What Types Of Fuses Are Available For My Off-Grid System?

The type of fuses you need for your off-grid system in a cabin, van, motorhome, boat, or golf cart depends on the specific components and electrical setup of your system. Fuses are crucial for protecting the wiring and electrical components in your system from overcurrent and short circuits.

Here are some common types of fuses used in off-grid systems:

Automotive Blade Fuses:

These are standard fuses often used in most vehicles, including trucks, vans, motorhomes, and golf carts. They come in various amperages and are widely available. Automotive blade fuses are suitable for protecting low to moderate current circuits. These fuses are frequently utilized in environments where multiple smaller circuits need protection. Their main purpose is to create a structured assembly of connections, accompanied by accurate labels, facilitating a clear identification of which fuse corresponds to each specific device or component.

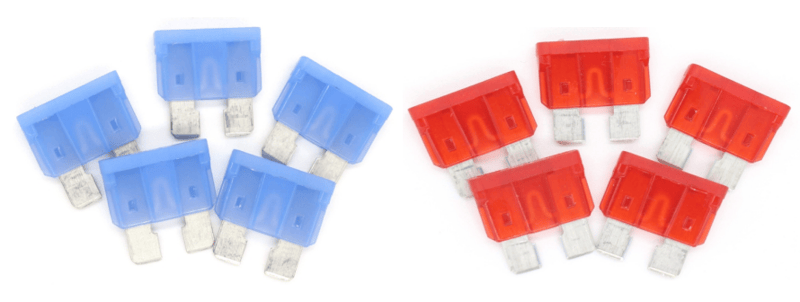

Automotive Blade Fuses

MIDI Fuse:

MIDI® Fuses present a cost-effective and space-efficient answer to high-current wiring protection needs. Recognized as standard circuit protection devices in automobiles and trucks, MIDI® Fuses stand out for their economic value and adaptability. Moreover, they find utility in off-grid system applications, particularly in scenarios where space is at a premium. Featuring a sleek bolt-on design, these fuses not only optimize space usage but also effortlessly blend into diverse applications and projects with seamless integration.

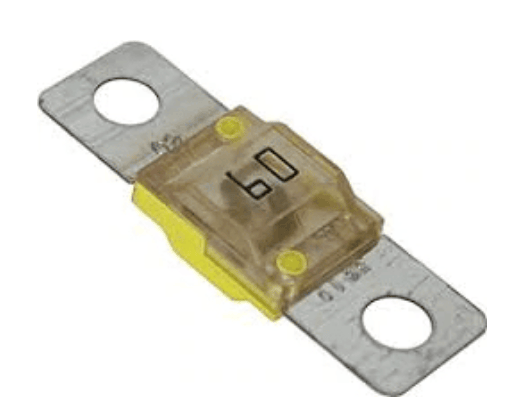

MIDI Fuse

ANL Fuses (Amplifier Fuses):

ANL fuses are high-amperage fuses and are suitable for protecting larger circuits in off-grid systems. They are commonly used in larger installations where higher current protection is required.

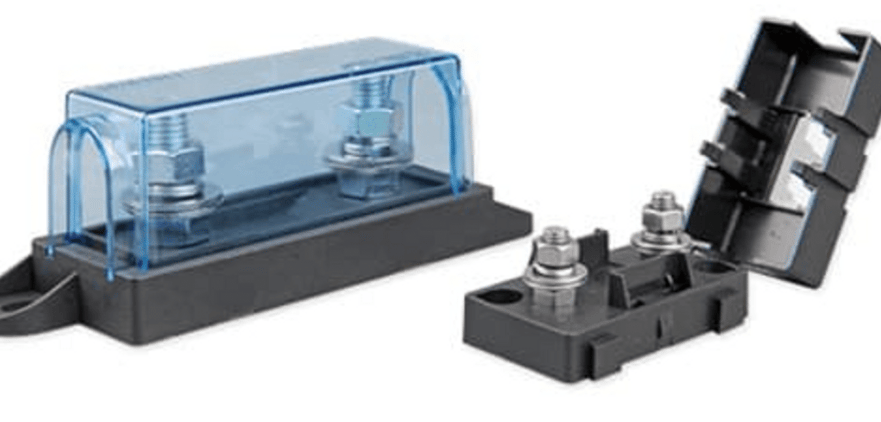

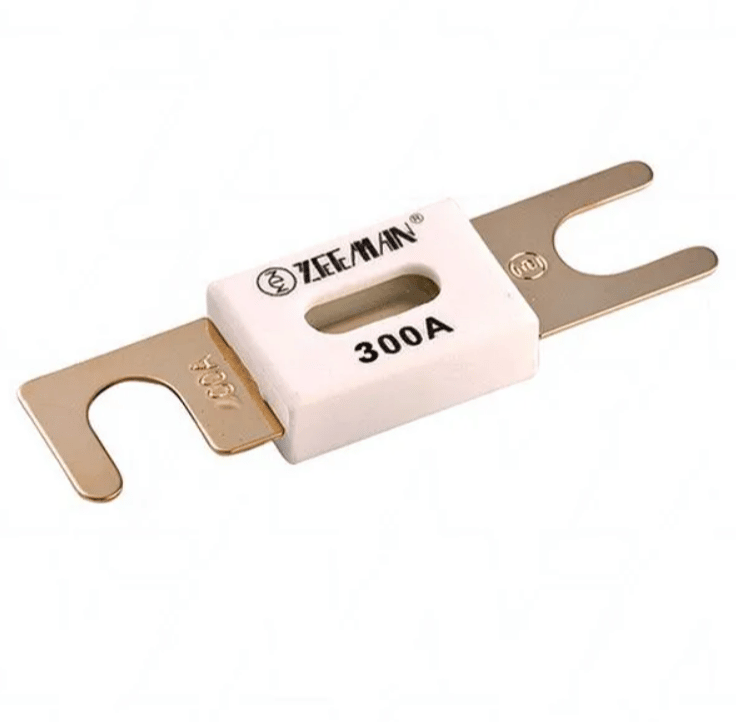

ANL Fuse

The ANL fuse, characterized by its bolt-down design, serves as a viable alternative to the MEGA fuse and is recognized for its fast-acting attributes. Particularly suitable for substantial loads, ANL fuses find application in diverse settings such as inverters, charge controllers, power distribution panels, and serve effectively as the primary battery or system fuse.


Mega Fuse:

Mega fuses are often used in off-grid solar power systems and other off-grid setups where high current protection is required. In off-grid systems, mega fuses serve a similar purpose as they do in automotive and industrial applications: they protect the system from overcurrent conditions, such as short circuits or excessive current draw.

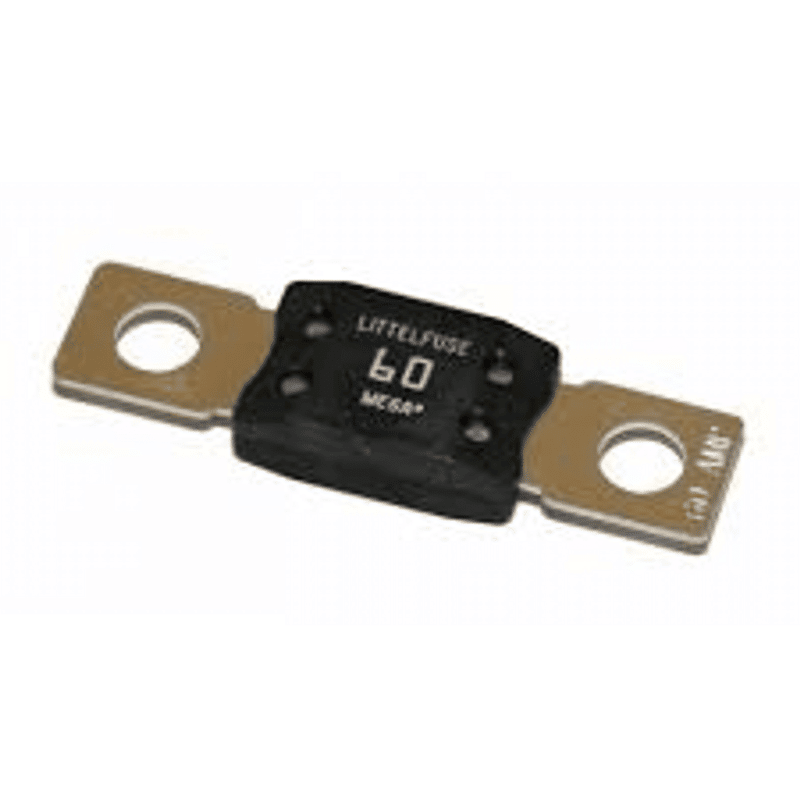

Mega Fuse

The Mega fuse, widely embraced for its broad utility, is a sturdy and slow-blow, bolt-down fuse. Distinguished by its larger size and higher Amp ratings in comparison to the MIDI fuse, it is specifically designed for M8 mm bolts. Primarily employed to secure more substantial loads, such as inverter/chargers, power distribution panels, and solar chargers within your system, the MEGA fuse comes in two variants: a 32 Vdc fuse for 12 and 24 Volts systems, and a 58Vdc fuse tailored for 48 V systems.


MRBF Fuse and Bar:

An MRBF fuse stands for “Marine Rated Battery Fuse.” These fuses are designed to provide protection for the main circuit in large battery banks, particularly in marine and boating applications. MRBF fuses are built to withstand the harsh conditions often encountered in marine environments, including exposure to saltwater, humidity, and other challenging elements.

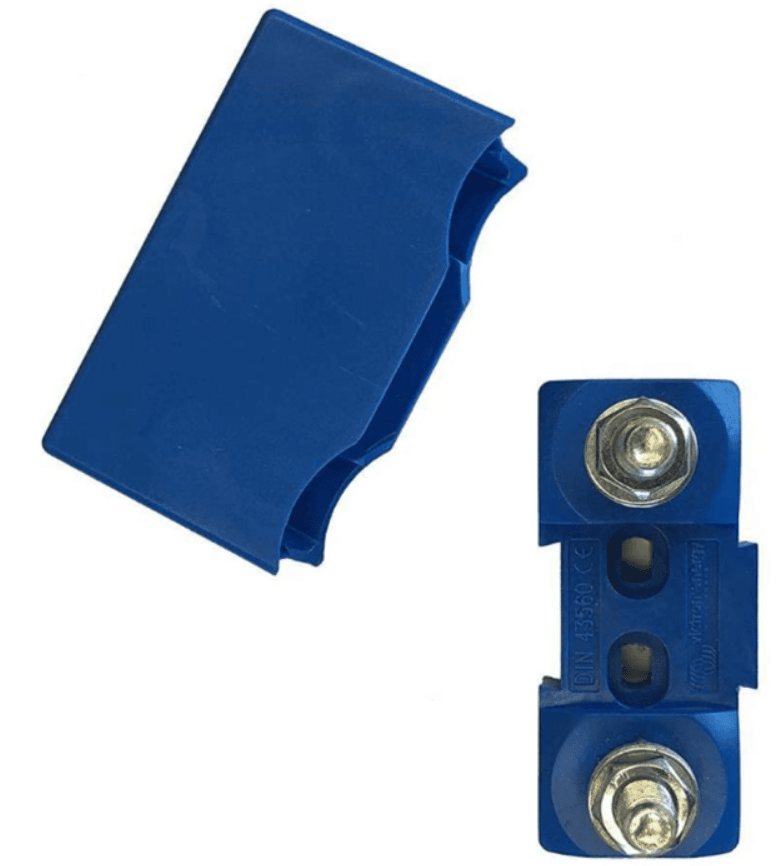

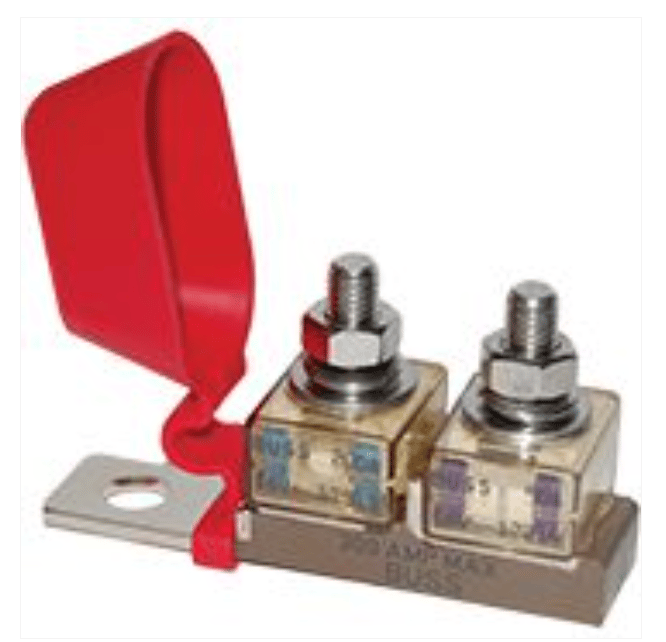

MRFB Fuse and Bar

They are characterized by their robust construction and durability, making them well-suited for use in boats, yachts, and other marine vessels where reliable battery protection is crucial. MRBF fuses are typically available in various amperage ratings to accommodate different sizes of battery banks and electrical systems on marine vehicles.

Installing MRBF fuses directly onto the positive post of lithium batteries is a common practice to comply with safety regulations and distance rules associated with lithium batteries. Lithium batteries have specific safety considerations, and these fuses are strategically placed to enhance protection within the electrical system. The proximity of the fuse to the battery’s positive terminal helps ensure rapid response in case of a short circuit, providing effective protection for the battery and associated components. This installation approach aligns with safety standards and guidelines to promote secure and compliant usage of lithium batteries in various applications, including marine and off-grid systems.


Class T Fuses:

Class T fuses are fast-acting fuses suitable for protecting inverters and other high-current components in off-grid systems. We usually install these where we have a large group of batteries between the battery positive and the inverter directly before the main system breaker.

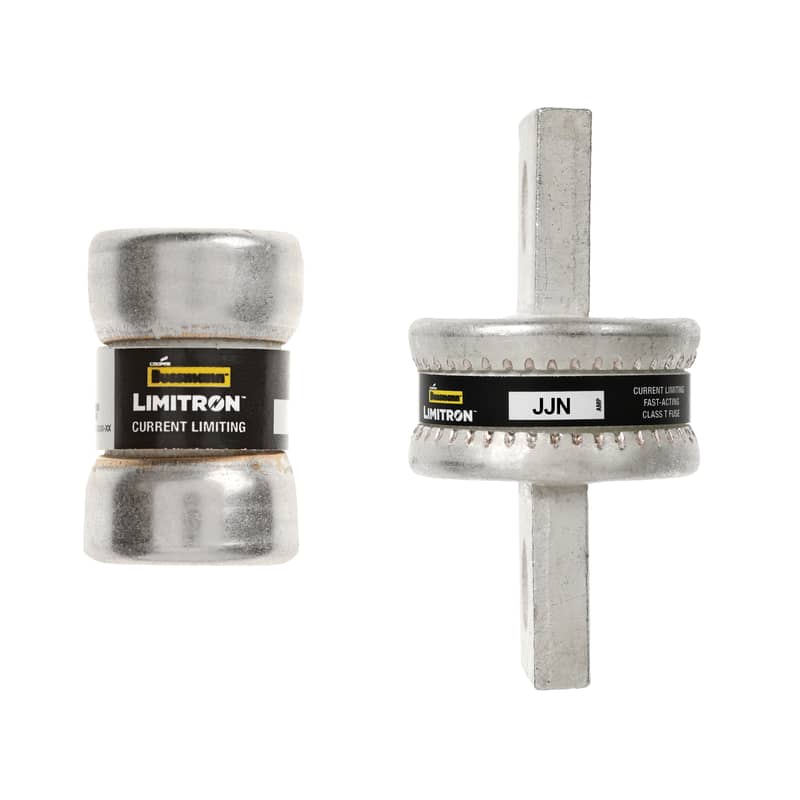

Class T Fuses

These fuses are designed to combine the characteristics of current-limiting and fast-acting protection. Let’s break down some of the key features mentioned:

  • Type: Current-limiting, fast-acting fuses.
  • Current Limitation: The term “current-limiting” indicates that these fuses are designed to limit the amount of fault current that can flow through them. This helps prevent damage to equipment in the event of a short circuit.
  • Fast-Acting: Fast-acting fuses respond quickly to overcurrent conditions, providing rapid interruption to protect components.

Compliance with Standards:

  • NEC Section 110.9 Compliance: Meeting the requirements of NEC Section 110.9 ensures that these fuses are suitable for use in today’s large capacity electrical systems and comply with relevant safety standards.

It’s important to note that the specific features and performance characteristics can vary between different manufacturers and models of Class T fuses. Always refer to the manufacturer’s documentation and specifications for detailed information and guidelines on proper use in specific applications.

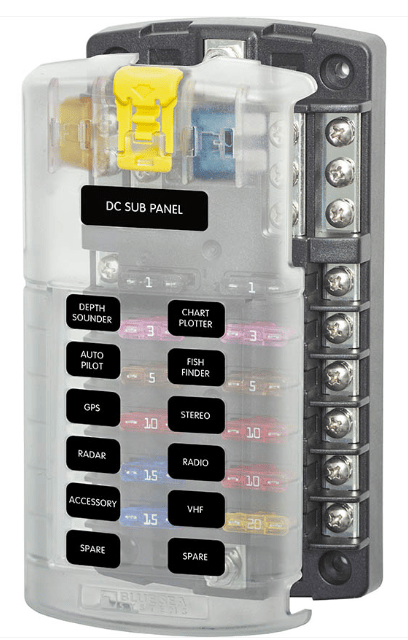

Fuse Blocks and Holders: These are devices that hold multiple fuses such as the automotive blade fuses, providing a convenient way to organize and protect multiple circuits. Fuse blocks can be useful for managing the fuses in mobile work trucks, vans, campers and trailers as well as larger off-grid systems.

Fuse Block

Fuse Block Off-Grid System Application:

  • Convenience: Managing multiple electrical circuits can be complex. Fuse blocks provide a centralized and organized solution for the protection of various components.
  • Ease of Troubleshooting: With a fuse block, troubleshooting and replacing fuses become more straightforward as the circuits are organized in one accessible location.
  • Compatibility: Fuse blocks can accommodate different types and sizes of fuses, making them versatile for various system requirements.

Fuse Holders

We carry various fuse holders and busbars for you specific system design. Check out our for quick purchase and fast shipping on these and many other devices and connections like inverters, controllers and batteries.

Fuse Holder
Fuse Hoder

Conclusion

When selecting fuses for your off-grid system, it’s important to consider the current ratings of the components you are protecting. You can find this information in the user manuals or technical specifications of your devices and equipment. It’s also advisable to consult with a professional electrician or someone experienced in off-grid electrical systems to ensure that your fuse selection meets safety and code requirements for your specific application. At IOTG Solar we can help you with this and any other off-grid question you may have.

It’s crucial to select fuses that are appropriate for the specific voltage and current requirements of the off-grid system components. The sizing and type of fuse should be based on the equipment specifications and the overall design of the system. Regular maintenance and monitoring of fuses are important to ensure they are in good condition and provide effective protection.
