What Is A Microinverter?

How Does It Work And Where Would I Want One ?

• Introduction
• What is a Microinverter?
• Key Advantages of Microinverters
• Potential Downsides of Microinverters
• Conclusion

Introduction

When I was first introduced to solar around 2008, the focus was primarily on off-grid systems. This may have been because I was deeply involved in the telecom industry, where power and storage were critical, and my work centered around battery backup systems. Alternatively, it could have been that Enphase, the pioneer of microinverters, had already introduced the technology I believe in 2006 or so, but I simply wasn’t aware of it. Either way, my journey naturally followed the battery side of solar, which was, of course, the off-grid sector.

While I was working with inverter chargers, creating power where none existed, and helping those who needed it, the idea of an inverter converting a solar panel’s DC output into alternating current on the spot wasn’t something I even considered.

Even years later, while I was aware of microinverters, they simply weren’t relevant in the off-grid world, we just didn’t use them.

To this day, microinverters are primarily designed for grid-tied systems, and over the years, they have only become more advanced and powerful. While Enphase has long been the leader in this technology, many other brands have since emerged, bringing microinverters to the forefront of grid-tied solar.

Now that we’re also offering grid-tied systems, I figured it’s time to start talking more about these devices and their role in the grid-tied solar world.

What is a Microinverter?

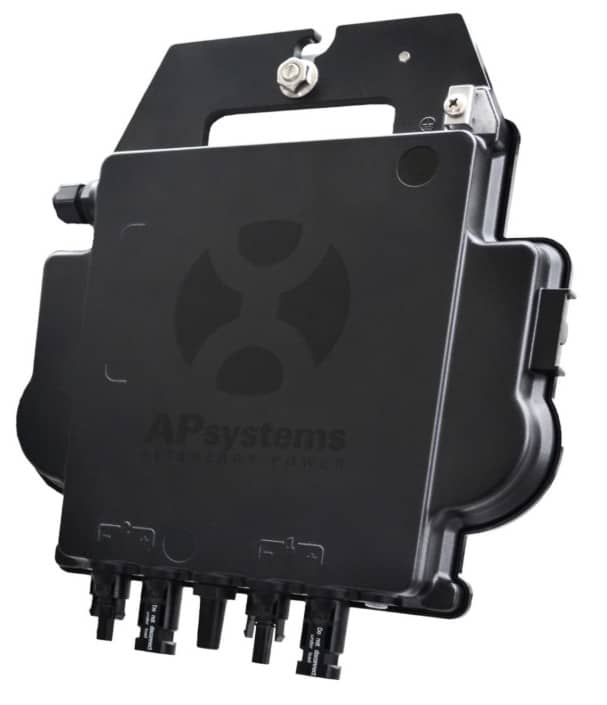

A microinverter is a small device used in solar energy systems to convert the DC (direct current) electricity generated by a single solar panel into AC (alternating current) electricity. Since homes, businesses, and the power grid operate on AC power, this conversion is essential for solar energy to be usable.

Unlike traditional string inverters, where multiple solar panels are connected together and feed DC power into one central inverter, microinverters operate on a per-panel basis. Each solar panel gets its own microinverter, allowing it to work independently from the others.

1. Solar Panel Generates DC Power
   • Sunlight hits the solar panel, exciting electrons and generating direct current (DC) electricity.
   • DC power flows out from the panel to the microinverter.
2. Microinverter Converts DC to AC
   • The microinverter immediately converts the panel’s DC power into AC power right at the panel level.
   • This means the panel produces grid-ready electricity without needing a central inverter.
3. AC Power is Sent to the Home or Grid
   • The microinverter synchronizes its AC output with the home’s electrical system and the utility grid.
   • The converted AC power is then used by appliances, stored in a battery (if available), or sent to the grid.

Key Advantages of Microinverters

✅ Independent Panel Operation:

• Since each panel has its own inverter, one panel’s shading, dirt, or damage won’t affect the others.
• With a string inverter, if one panel underperforms, the whole string loses efficiency.

✅ Maximum Power Point Tracking (MPPT) for Each Panel:

• Microinverters optimize each panel’s energy output individually, increasing overall system efficiency.
• String inverters optimize the whole array as one unit, which can reduce efficiency if some panels are shaded or oriented differently.

✅ Improved Safety:

• Microinverters convert high-voltage DC into lower-voltage AC right at the panel, reducing fire risks.
• String inverters require high-voltage DC wiring, which can be a safety hazard if not properly installed.

✅ Easy System Expansion:

• If you want to add more panels later, you can simply install new panels with their own microinverters.
• With string inverters, adding panels might require a new inverter or reconfiguring the system.

✅ Panel-Level Monitoring:

• Many microinverters come with real-time monitoring software, allowing homeowners to track each panel’s performance separately.
• String inverters only provide overall system monitoring, making it harder to diagnose underperforming panels.

Potential Downsides of Microinverters

❌ Higher Upfront Cost:

• Since you need a microinverter for each panel, initial costs are higher than using a single string inverter.

❌ More Equipment on the Roof:

• More components mean more potential failure points, though microinverters typically last 20–25 years, similar to solar panels.

❌ Harder to Repair:

• If a microinverter fails, it must be replaced on the roof, whereas a string inverter is located on the ground for easier servicing.

Conclusion

Microinverters have transformed solar energy conversion by providing panel-level optimization, improved efficiency, and enhanced monitoring. Although every system design is unique, not all solar systems benefit from microinverters. In certain situations, string inverters still offer the best solution, as they are also more affordable. Ultimately, the choice depends on the specific design and needs of the system.

Today’s systems are seeing the rise of hybrid inverters. These hybrid systems offer a versatile solution by integrating multiple functionalities into one package. As technology continues to evolve, we can expect further improvements in solar energy solutions. One thing is certain: the future of solar energy will only continue to improve.
