Inverter To Main AC Panel

Choosing the Right AC Cable Size to Connect Your Inverter

Introduction
Understanding Cable Sizes
Gauge Sizes With A Distance Of 30 FT
Example #1 Schneider 4048 Inverter
Example #2 Victron Multiplus 12 volt 3000
Example #3 Luxpower Hybrid Inverter 8000
Conclusion

Introduction

In off-grid solar installations, we often encounter cabins and homes where wiring is less than ideal. While these setups may appear to function normally, many lack critical safety components like fuses, breakers, and adequate grounding, essentials for protecting both system performance and safety.

A primary focus in these installations should be the connection from the inverter output to the main AC panel, where proper wiring is crucial. In smaller systems, the inverter might only connect via an attached plug or rely solely on DC if no AC is needed. However, when AC is included, the wiring must be suitable for the inverter’s current capacity and the distance to the panel to avoid overheating, and ensure efficient power flow.

Sometimes, wiring issues arise when inverters are upgraded but the original cabling remains unchanged. For example, a higher-output inverter may exceed the current rating of the existing wiring, posing a fire risk. The cable’s size must be reassessed to match the inverter’s amperage, and the panel itself should be rated to handle the inverter’s output, particularly if it’s a small panel with only a few breakers.

When setting up or upgrading, it’s essential to review both the wire gauge and the panel’s capacity to support the inverter, safeguarding both the system’s durability and the occupants’ peace of mind.

Understanding Cable Sizes

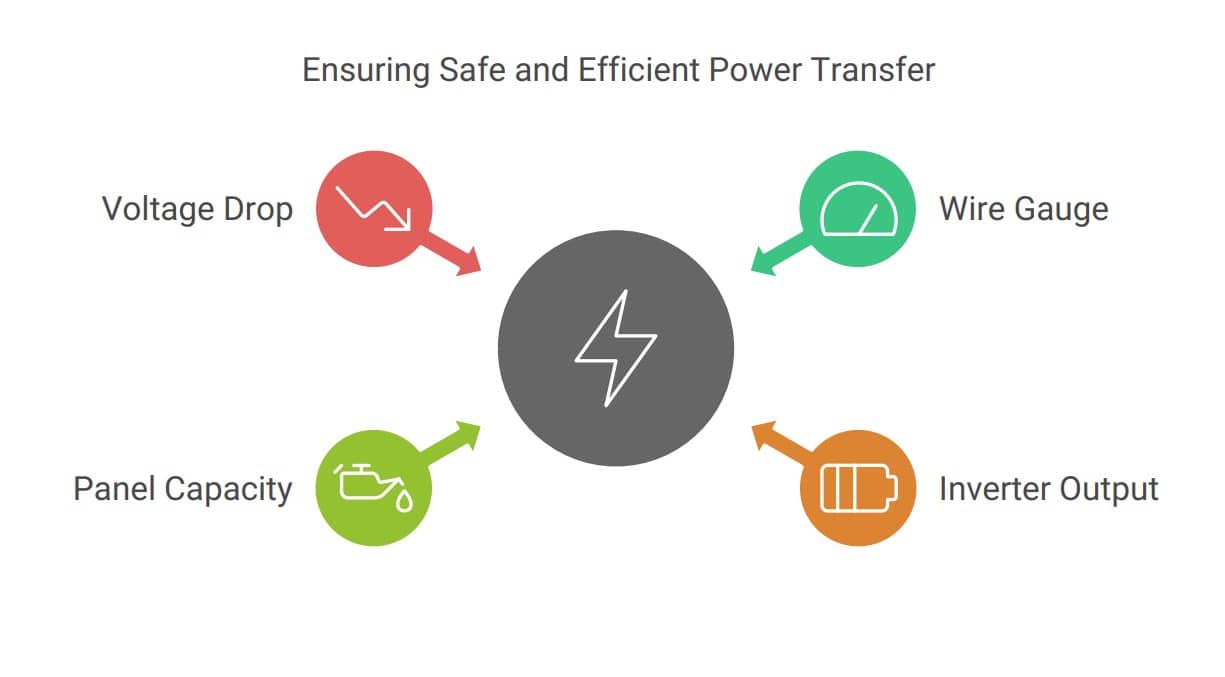

Understanding the Role of Wire Gauge in Power Transfer:
- Wire gauge directly impacts how much current can safely pass from your inverter to the AC panel. If the wire is undersized, it could overheat, causing voltage drops and risking damage to both your system and connected appliances. Selecting a gauge that meets or exceeds the inverter’s maximum output current capacity is crucial.
Matching Inverter Output with Panel Capacity:
- It’s important that your main panel can handle the inverter’s output. If you’re connecting to a small AC panel with limited breaker space, verify that its total rated amperage is equal to or greater than the maximum output from your inverter. For example, a 50-amp inverter output requires a panel that can support at least 50 amps safely.
Wire Gauge Recommendations Based on Amperage and Voltage:
- For 120V or 120/240V systems, wire gauge recommendations are typically as follows:
  - 120V Systems: For a 40-amp load, an 8-gauge copper wire is usually sufficient, while 6-gauge is needed for 50 amps to maintain safety.
  - 120/240V Systems: Split the amperage across two legs to calculate each wire’s requirements, ensuring each leg’s wire is appropriately rated.
Consider Voltage Drop for Longer Cable Runs:
- Although voltage drop is a bigger issue in DC wiring, it’s still relevant for AC connections, especially over long distances. Selecting a slightly larger gauge than required (e.g., using a 6 AWG wire instead of 8 AWG) can help offset voltage drop, making sure your system operates efficiently and minimizes energy losses over time.

Gauge Sizes With A Distance Of 30 FT

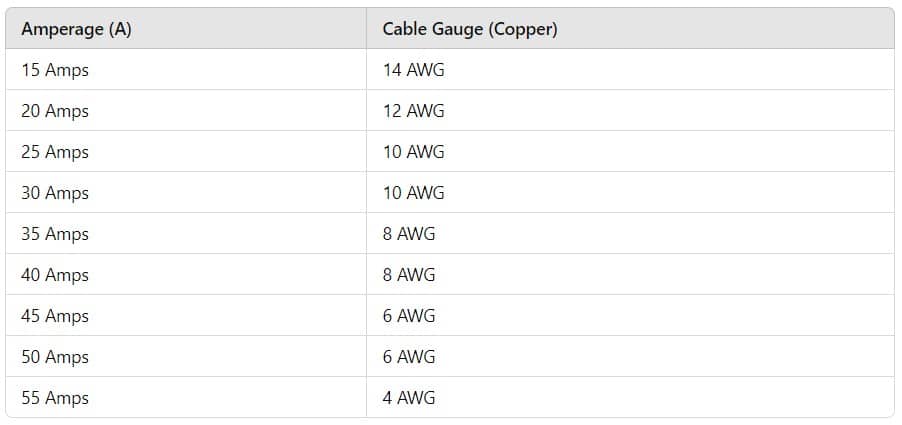

Here’s a list of amperage ratings along with the appropriate cable gauges for distances of 30 feet, based on standard wire gauge recommendations:

Explanation:

Amperage Rating: The current the wire needs to handle.
Cable Gauge: Refers to the American Wire Gauge (AWG) standard, where a smaller number indicates a thicker wire. Thicker wires can carry more current without overheating.

Notes:

These recommendations can vary slightly depending on the installation environment, ambient temperature, and whether the wire is run through insulation or conduit.
This is just an example, always consult local electrical codes or a professional electrician to ensure compliance and safety.

For more detailed information on wire gauge and amperage, you can refer to resources like the National Electrical Code (NEC) in the US or the Canadian Electrical Code (CEC) in Canada, or various electrical wiring guides available online.

Example #1 Schneider 4048 Inverter

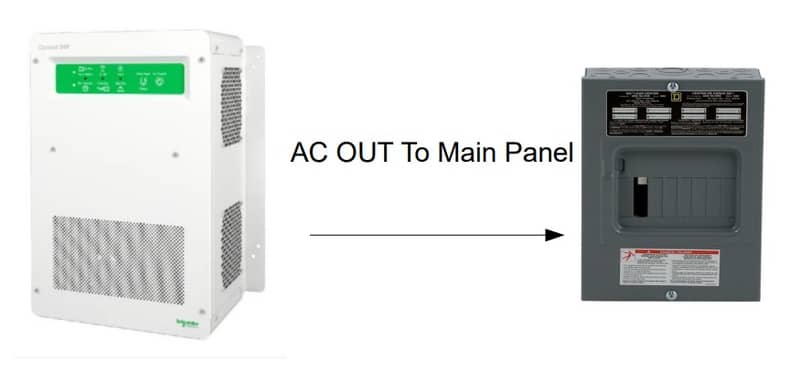

Schneider 4048 Inverter (120/240V, 60 Feet from Main Panel)

The Schneider 4048 inverter outputs 3,800 watts continuously at 120/240 volts, with a peak current of 41 amps. Given the 60-foot distance to the main panel:

Wire Size Recommendation: For 41 amps over a 60-foot run, #4 AWG copper wire is ideal. This wire gauge supports the inverter’s amperage while minimizing voltage drop over the extended distance, helping to ensure stable performance.
Voltage Drop Consideration: With this longer distance, #4 AWG provides adequate thickness to reduce voltage drop and support the Schneider’s surges without compromising efficiency.

Example #2 Victron Multiplus 24 volt 3000

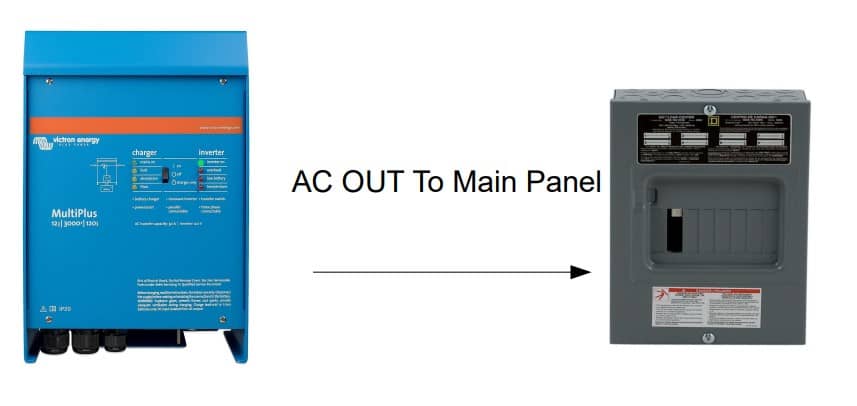

Victron MultiPlus 3000 (24V, 120V Output, 20 Feet from Main Panel)

The Victron MultiPlus 3000 operates at 24 volts and outputs 120V AC, delivering up to 3,000 VA or 25 amps.

Wire Size Recommendation: For 25 amps over a shorter 20-foot run, #10 AWG copper wire will meet the requirements, keeping the voltage drop within a safe range without oversizing.
Voltage Drop Consideration: At only 20 feet, #10 AWG is cost-effective and handles the output efficiently, supporting stable power at 120 volts.

Example #3 Luxpower Hybrid Inverter 8000

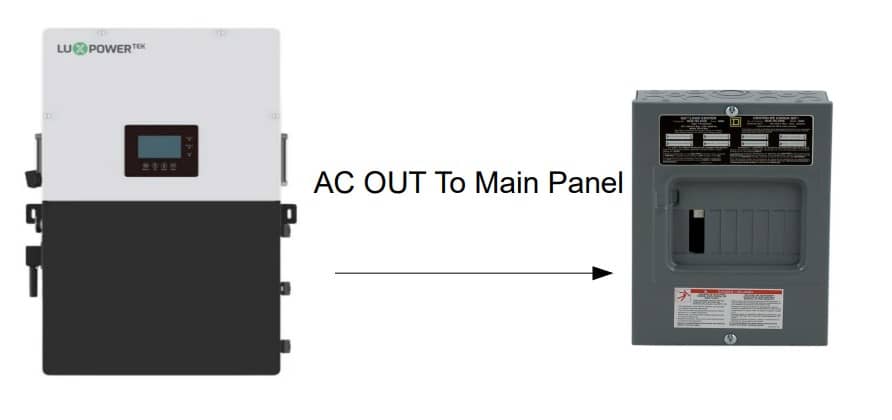

Luxpower 8000W Inverter (48V, 120/240V, 15 Feet from Main Panel)

For the Luxpower 8000W, which outputs 50 amps, the distance to the panel is only 15 feet.

Wire Size Recommendation: #6 AWG copper wire is suitable for this 50-amp load over a 15-foot distance, meeting the inverter’s demands without unnecessary costs.
Voltage Drop Consideration: With minimal distance, #6 AWG prevents voltage drop while comfortably handling the amperage, offering stable and efficient performance.

Conclusion

For safe and efficient operation in off-grid setups, selecting the right wire size for AC output connections is key. At IOTG Solar, we prioritize proper installation practices to ensure both safety and reliability. Choosing slightly thicker wire when dealing with longer distances can help keep voltage drops within safe limits, ensuring the longevity of both the inverter and the wiring. Whether you’re installing a Schneider, Victron, or Luxpower inverter, following these guidelines will help you achieve the best possible performance from your solar system.
