Understanding Dry Contact Relays

How They Work and Why They Matter For Your System

• Introduction
• What is a Dry Contact Relay?
• How Does a Dry Contact Relay Work?
• Using Dry Contact Relays for Automatic Generator Start
• Other Applications of Dry Contact Relays
• Conclusion

Introduction

Imagine you have a light switch in your home, but instead of directly turning on a light, it simply tells another switch to do the job. This is similar to how a dry contact relay works. It’s a type of electrical switch that doesn’t provide power itself but allows another device to turn on or off.

Dry contact relays are commonly used in inverters, generators, and automation systems. One of their most important uses is in automatic generator start systems, where they help turn on a backup generator when the main power source is low. However, they have many other applications, from home automation to industrial machinery.

In this article, we’ll explain what a dry contact relay is, how it works, and some of the practical ways you can use it.

What is a Dry Contact Relay?

A relay is an electrically controlled switch. A dry contact relay, also called a “voltage-free” or “potential-free” contact, is a relay that simply opens and closes a circuit without supplying power to it.

Think of it like a remote control for an electrical system. The relay itself doesn’t power the circuit—it just tells it when to turn on or off based on a signal from another device, like an inverter or a control panel.

How Does a Dry Contact Relay Work?

A dry contact relay has two main parts:

1. A coil (electromagnet) – This part gets energized by an electrical signal.
2. A set of contacts (switches) – These open or close depending on whether the coil is powered.

When electricity flows through the coil, it creates a magnetic field that moves the contacts to either connect or disconnect the external circuit. Since no voltage is supplied by the relay itself, it allows for safe and flexible control of different systems.

Using Dry Contact Relays for Automatic Generator Start

One of the most useful applications of dry contact relays is in inverters that control backup generators.

Here’s how it works:

• When battery voltage drops too low in an off-grid solar system, the inverter sends a signal to the dry contact relay.
• The relay closes its contacts, allowing a small electrical signal to reach the generator’s auto-start circuit.
• The generator turns on and begins recharging the batteries.
• Once the batteries are charged, the inverter sends another signal to open the relay contacts, stopping the generator.

This system automates the generator start and stop process, ensuring power is always available without needing manual intervention.

Other Applications of Dry Contact Relays

Dry contact relays are not just for generators—they have many other practical uses, including:

• Home Automation: Used to control lights, security systems, or heating without direct wiring.
• Industrial Machinery: Helps operate motors, pumps, and conveyor belts safely.
• Alarm Systems: Activates alarms when triggered by a sensor, like a smoke detector.

Because dry contact relays can handle different voltage levels safely, they are widely used in automation and control systems.

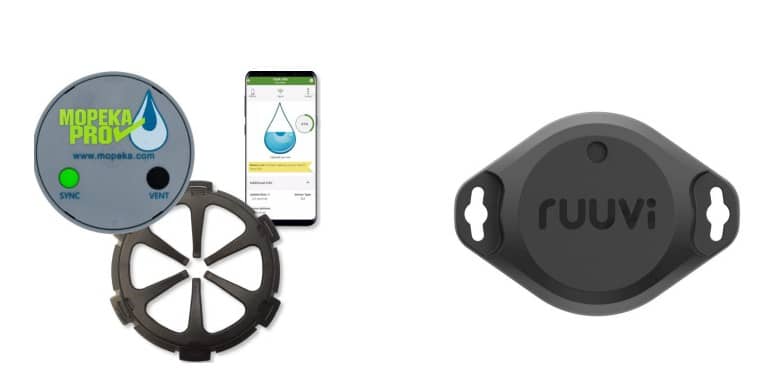

Ruuvi Tags and Mopeka sensors specialize in monitoring and data transmission, and they can be integrated with modern solar systems through dry contact relays found in inverters and other devices like shunt monitors. These relays serve as simple on/off switches that can trigger alerts, activate automation, or log system events based on specific conditions, such as battery voltage thresholds or tank levels. By leveraging these relays, Ruuvi Tags and Mopeka sensors can enhance remote monitoring capabilities, offering real-time insights into system performance and allowing users to respond proactively to changes in their solar setups.

Conclusion

Dry contact relays are simple yet powerful devices that help control electrical circuits without supplying power themselves. They are especially useful for automatic generator start systems, but they also have many other applications in home automation, industrial equipment, and security systems.

Understanding how they work gives you insight into how modern electrical systems function, and if you ever need to automate something in your off-grid setup, a dry contact relay might be the perfect solution!
