Will My Inverter Restart After a Low Battery Shutdown?

Can my solar panels recharge my batteries enough to automactically turn my inverter back on again?

Solar Panel Resilience: Restoring Inverter Power in Remote Settings
Understanding Inverter Behavior in Low Battery Situations
Inverter Charger Systems: Ensuring Battery Protection and Automatic Restart
Victron Multiplus Programming Example

Solar Panel Resilience: Restoring Inverter Power in Remote Settings

In remote settings, such as cabins or homes, it’s common to leave the inverter running to maintain essential functions like internet connectivity for system monitoring or to keep lights and devices operational. However, during cloudy winter days, if the batteries drain to critically low levels and there’s no automatic generator start connected, a pertinent question arises: Can solar panels sufficiently recharge the batteries to restore power to the inverter?

Understanding Inverter Behavior in Low Battery Situations

Whether your inverter automatically restarts after shutting down due to low battery voltage and subsequently recharges the battery with solar power depends on the specific features and settings of your inverter and solar system. Some inverters are equipped with built-in low voltage disconnect (LVD) protection mechanisms.

When the battery voltage drops below a certain threshold, typically to prevent deep discharge and potential damage to the battery, the inverter will shut down to protect the battery. In such cases, the inverter will not automatically restart once the battery voltage increases, even if solar power is available for recharging. This is because the LVD feature is designed to prevent the battery from reaching critically low levels, and the inverter requires manual intervention to be restarted.

However, some advanced inverters may have settings or features that allow for automatic restart after a low voltage shutdown. These inverters can detect when the battery voltage rises to a safe level again, often due to solar charging, and will automatically restart to resume power conversion operations. It’s essential to consult the user manual or documentation provided by the manufacturer of your specific inverter to understand its capabilities and settings regarding low voltage shutdown and automatic restart.

Inverter Charger Systems: Ensuring Battery Protection and Automatic Restart

At IOTG SOLAR, we prioritize offering top-quality inverter charger systems, most of which come equipped with essential features like automatic restart after a low battery shutdown. Our installations ensure that these features are programmed correctly to safeguard your battery’s longevity.

Our range of trusted brands, including Magnum Energy, Victron Energy, Schneider, Xantrex, and Outback Power Systems, are known for their reliability and advanced functionalities. While some lower-capacity models may not include automatic restart features, we prioritize systems with this capability with our larger inverter systems.

Upon installation, the first step we take is to program the units to prioritize battery protection. This includes setting a low voltage shutdown to prevent full battery discharge, ensuring even our lithium batteries are safeguarded within manufacturer warranty limits, typically around 20%.

With our commitment to quality and meticulous programming, you can trust IOTG SOLAR to deliver inverter charger systems that prioritize battery health and offer the convenience of automatic restart functionality.

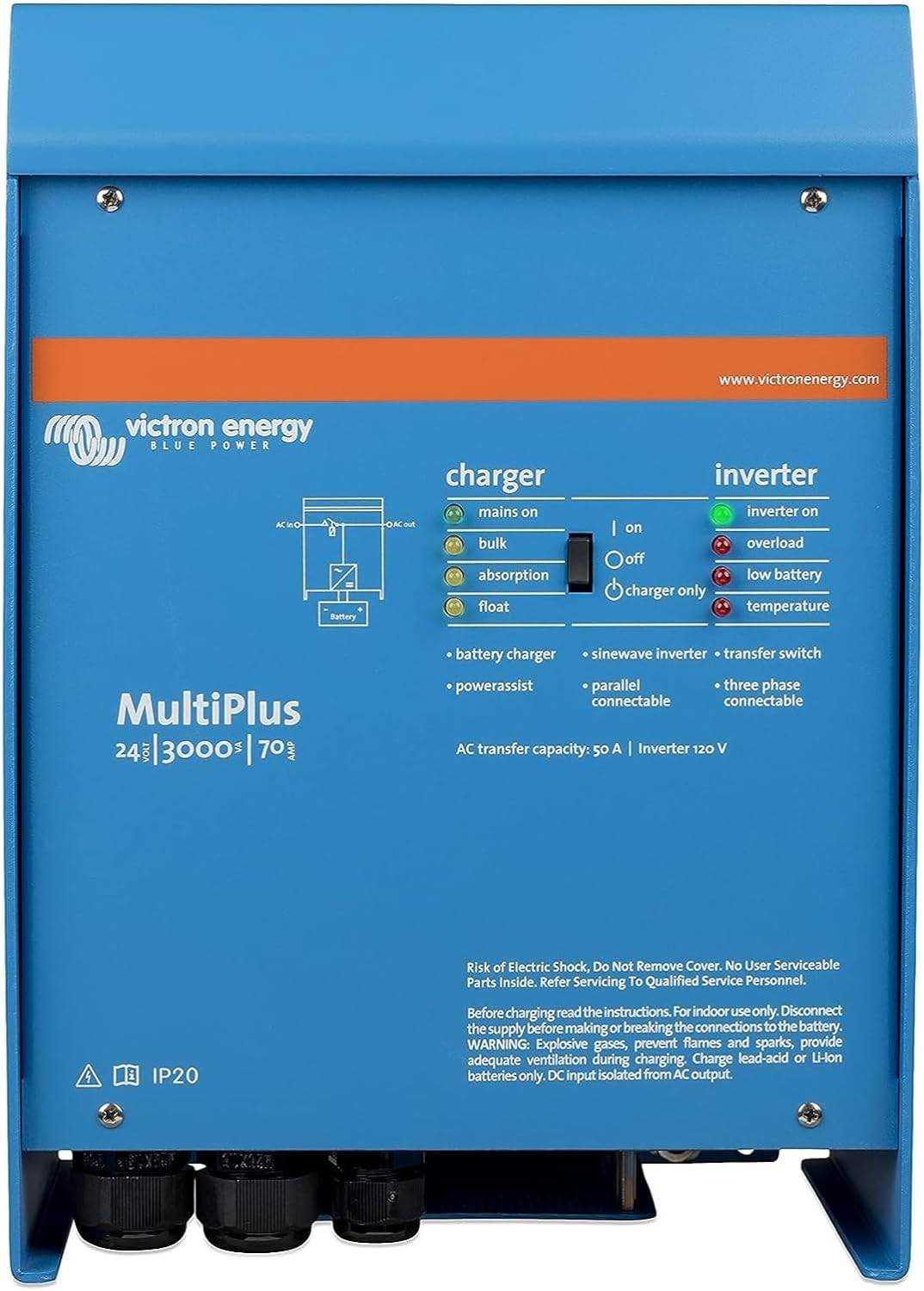

Victron Multiplus 3000 Programming Example

In the Victron Energy Multiplus 3000 and similar models, users have access to a range of setting parameters to tailor the inverter’s performance to their specific needs:

DC Input Low Shutdown:
- Determines the voltage threshold for inverter shutdown in response to low battery voltage.
- Proper configuration according to battery manufacturer specifications is crucial for optimizing battery lifespan.
- When programming the inverter via a laptop and MK3 connection cable we can do the following procedures.

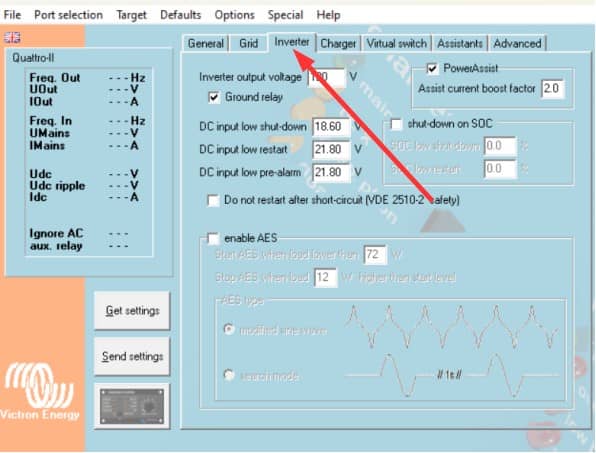

- Choose the Inverter tab like in the image below

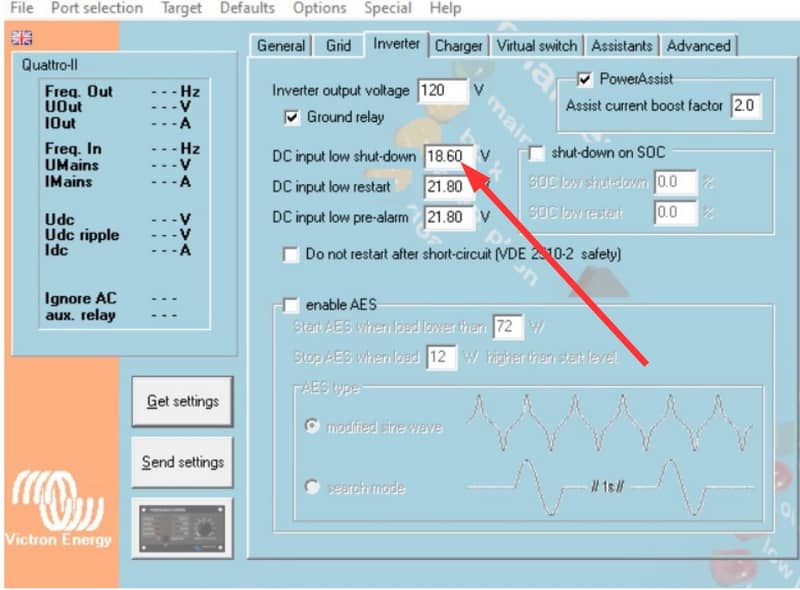

First select the DC input low shut-down to modify like in the image below

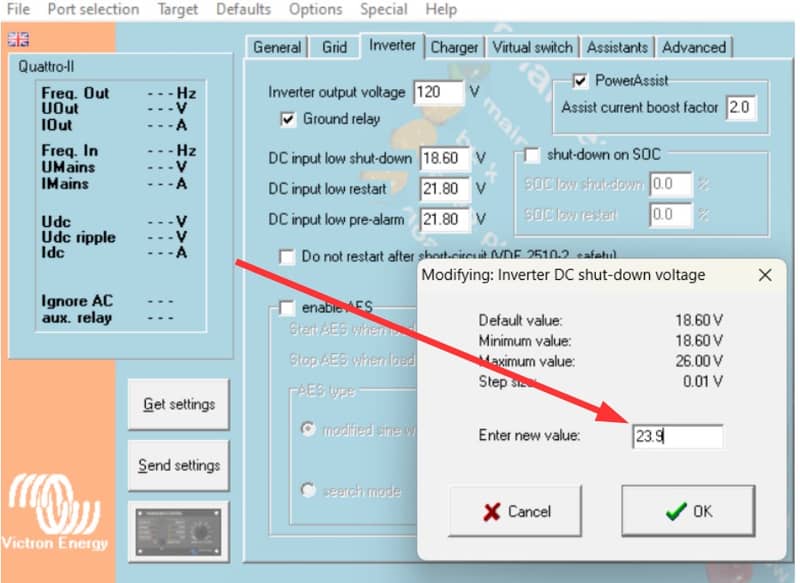

Then with the window that pops up change your selected value and click ok like in the second picture.

2. DC Input Low Restart:

Sets the voltage level at which the inverter automatically restarts after a low voltage shutdown.
To minimize frequent cycling, it’s recommended to set this value slightly higher than the low battery shutdown voltage.
First select the DC input low restart to modify like you did for the shut-down voltage.

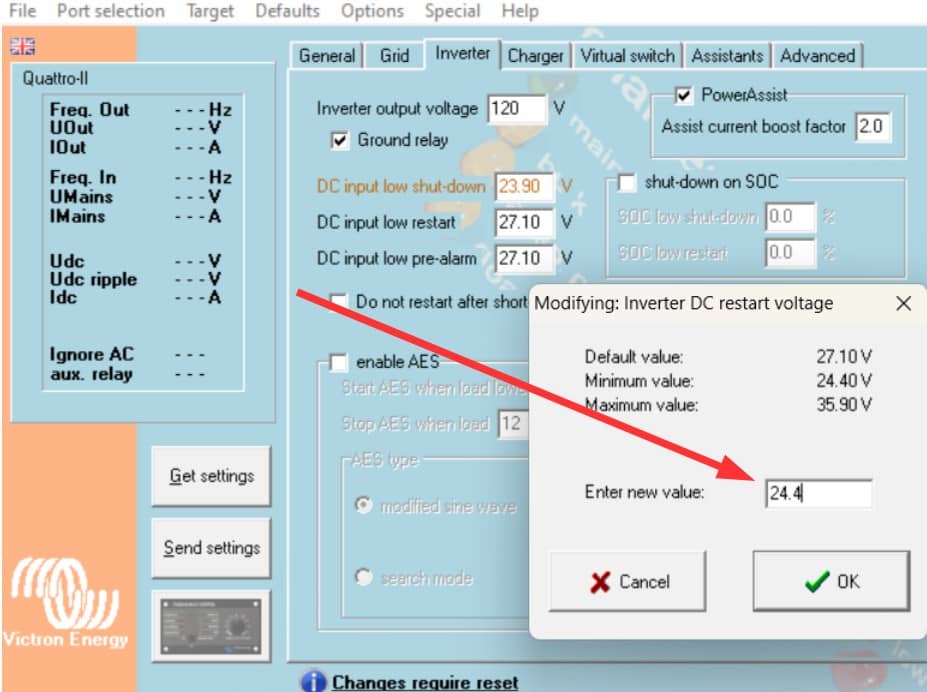

Then with the window that pops up change your selected value and click ok like the second picture once again.

3. DC Input Low Pre-Alarm:

Activates a pre-alarm indication at a specified voltage threshold.
Note that adjustments to the DC Input Low Restart or Shutdown levels will affect the Pre-Alarm level accordingly, as it’s an offset voltage relative to these settings.

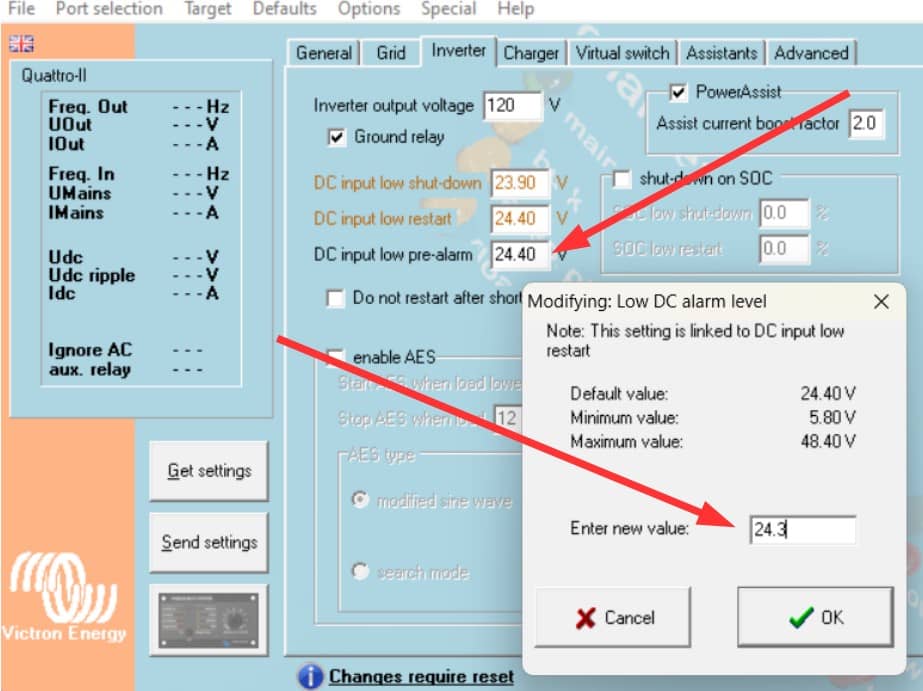

Select the pre-alarm voltage just below your restart voltage and click ok like the image below

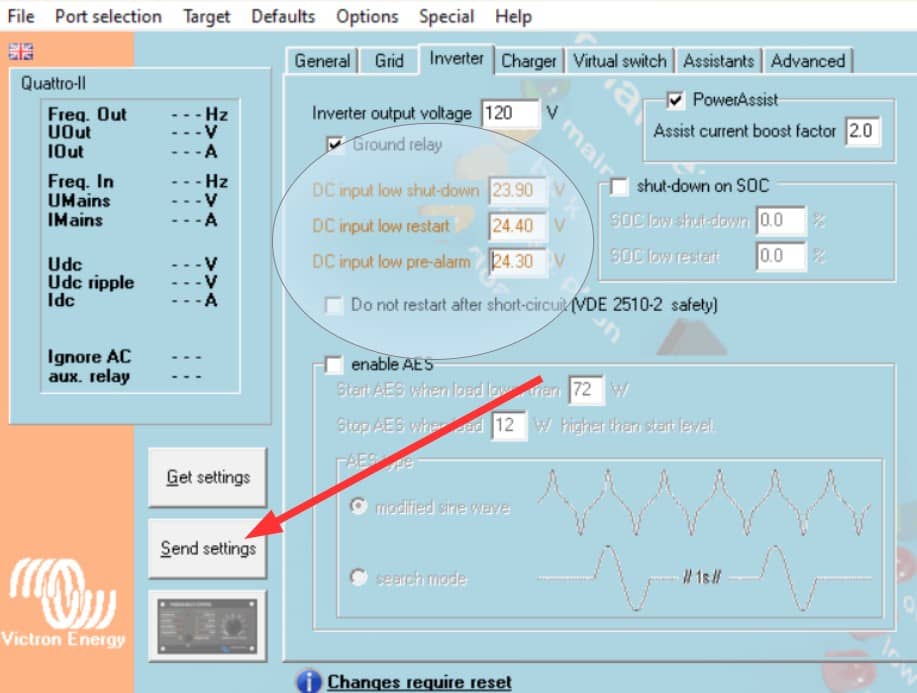

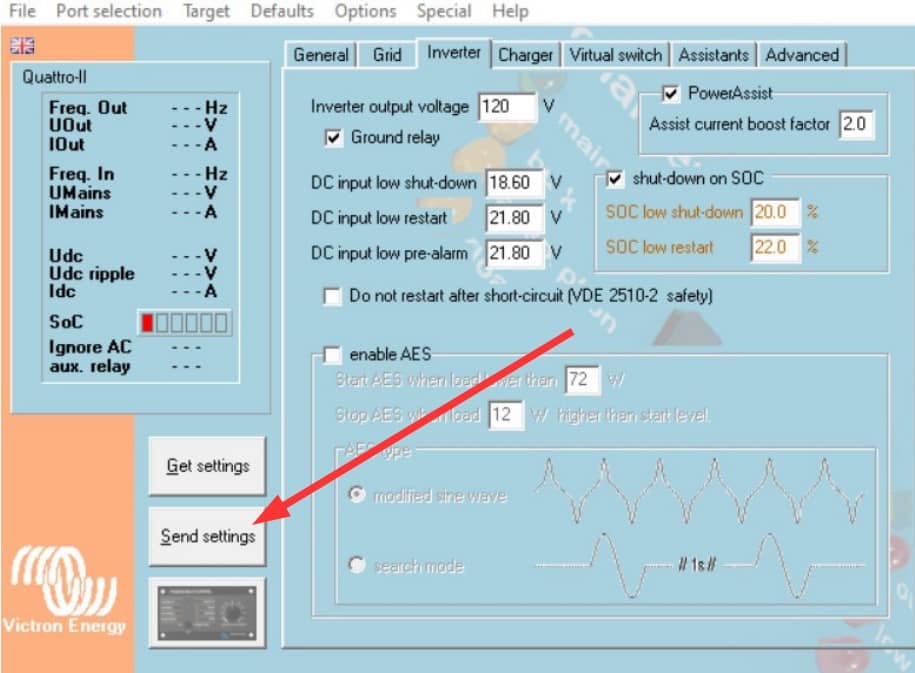

Now that your modifications are complete, don’t forget to send these new settings to the inverter in order to have these changes take affect.
Remember that this will restart the inverter so making these changes should happen when you are able to shut down the inverter and loads beforehand.

4. Low SOC Shutdown:

Automatically shuts down the inverter when the State of Charge (SOC) reaches a predetermined level.
Particularly useful in systems where battery voltage alone may not accurately reflect the battery’s state, especially during discharge.

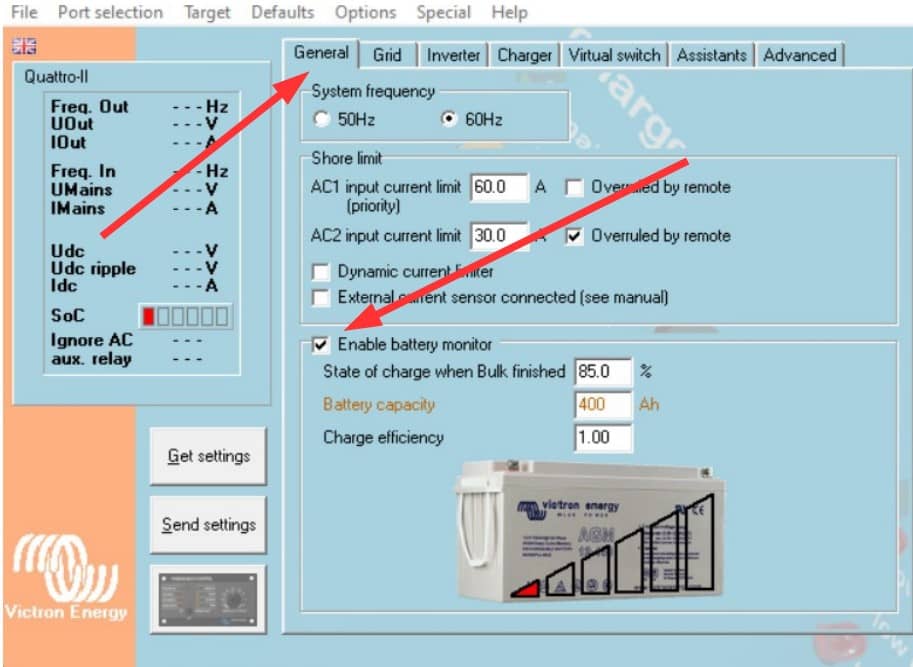

First you must have a battery monitor in place and have it selected like in the image below under the general tab.

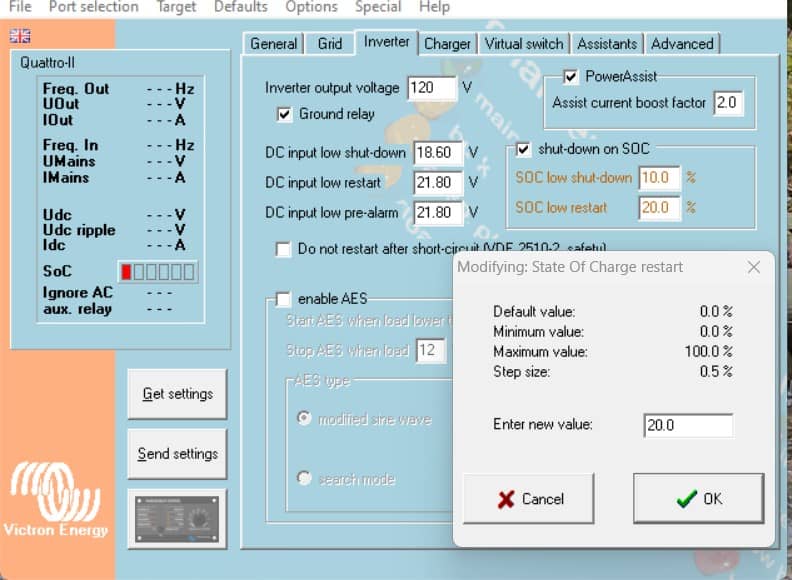

Then go back to the inverter tab and adjust your values just like you would if you chose the voltage shutdown and restart section.

Don’t forget to send your settings to the inverter and remember it will also require an inverter restart so confirm you are able to shutdown the inverter and your possible loads.

Certainly, selecting these values as an example was merely a demonstration. Every situation is unique, and these configurable parameters provide users with the flexibility to customize their inverter’s operation. This allows for efficient performance and battery protection tailored specifically to their individual needs.

Conclusion

In conclusion, when it comes to inverter charger systems, ensuring battery protection and the convenience of automatic restart features are paramount. At IOTG SOLAR, we prioritize the installation of top-quality systems from trusted brands.

By programming these units correctly, we safeguard your batteries from full discharge, even setting limits within manufacturer warranty specifications. Our commitment to quality ensures that your off-grid or standalone power system operates reliably and efficiently, providing peace of mind, especially during periods of low battery voltage. With IOTG SOLAR, you can trust that your energy needs are in good hands, backed by our expertise and dedication to customer satisfaction.

For individuals seeking consultation, education, or assistance in system designs related to off-grid solar applications, IOTG Solar stands ready to help. Our team is available to address questions, provide valuable insights, and offer support at every stage of the solar energy journey. Feel free to reach out to IOTG Solar anytime for expert assistance and comprehensive solutions tailored to your specific needs.
