What Is Charge Efficiency In A Battery?

What Is Charge Efficiency In A Battery?

What Does The Charge Efficiency In A Battery Mean And How Does It Differ Between Battery Chemistries?

  • What Does The Charge Efficiency In A Battery Mean?
  • What Is Charge Efficiency Difference Between A Flooded, Sealed Agm, Lead Carbon And A Lithium Chemistry?
  • How Does The Charge Efficiency Affect My Off-Grid Solar System?
  • Conclusion

What Does The Charge Efficiency In A Battery Mean?

Charge efficiency in a battery is like a measure of how good a battery is at storing and giving back electrical energy. Imagine a battery as a container that holds energy. When you put electricity into the battery to charge it, not all of that energy gets stored perfectly. Some of it is lost or wasted.

So, charge efficiency is a way to tell you how much of the energy you put into the battery actually stays there for you to use when you need it. For example, if you put 100 units of energy into a battery, but you can only get 90 units back out, the charge efficiency would be 90%.

Different types of batteries are better or worse at this. Some batteries are really good at keeping the energy you put in, like the ones in your phone or laptop, while others, like the ones in some older cars, are not as good.

The higher the charge efficiency, the better the battery is at holding onto the energy you give it, and that’s important because it means the battery can store more energy for your devices and work more effectively.

In an ideal world, a battery would have 100% charge efficiency, meaning that all the energy you put into it during charging would be readily available for use when you discharge it. However, in reality, no battery is perfectly efficient, and some energy is lost during the charging and discharging processes due to various factors. These factors can include:

  1. Internal Resistance: Batteries have internal resistance that causes them to heat up during charging and discharging. This heat represents wasted energy.
  2. Chemical Reactions: Energy can be lost as a result of chemical reactions within the battery that do not contribute to the useful output.
  3. Self-Discharge: Batteries can self-discharge over time, losing some of the stored energy even when not in use.
  4. Inefficiencies in Charging and Discharging Circuitry: The charging and discharging circuits and electronics can introduce some inefficiencies, resulting in energy losses.

Charge efficiency is typically expressed as a percentage, with a higher percentage indicating a more efficient battery. Different types of batteries have different charge efficiencies. For example, lead-acid batteries have lower charge efficiencies (around 80-90%), while lithium-ion batteries tend to have higher charge efficiencies (over 95%).

What Is Charge Efficiency Difference Between A Flooded, Sealed Agm, Lead Carbon And A Lithium Chemistry?

Charge efficiency can vary significantly between different types of batteries due to differences in their construction and chemistry. Here’s a comparison of charge efficiency for flooded lead-acid batteries, sealed AGM (Absorbent Glass Mat) batteries, lead-carbon batteries, and lithium chemistry batteries:

  1. Flooded Lead-Acid Batteries:
    • Charge Efficiency: Flooded lead-acid batteries typically have a charge efficiency in the range of 80-90%. These batteries are less efficient due to gassing (release of hydrogen and oxygen during charging), overcharging, and periodic maintenance needs.
  2. Sealed AGM Batteries:
    • Charge Efficiency: Sealed AGM batteries generally have a charge efficiency similar to that of flooded lead-acid batteries, typically in the range of 90-95%. They offer a slight improvement in efficiency compared to flooded batteries but still experience losses.

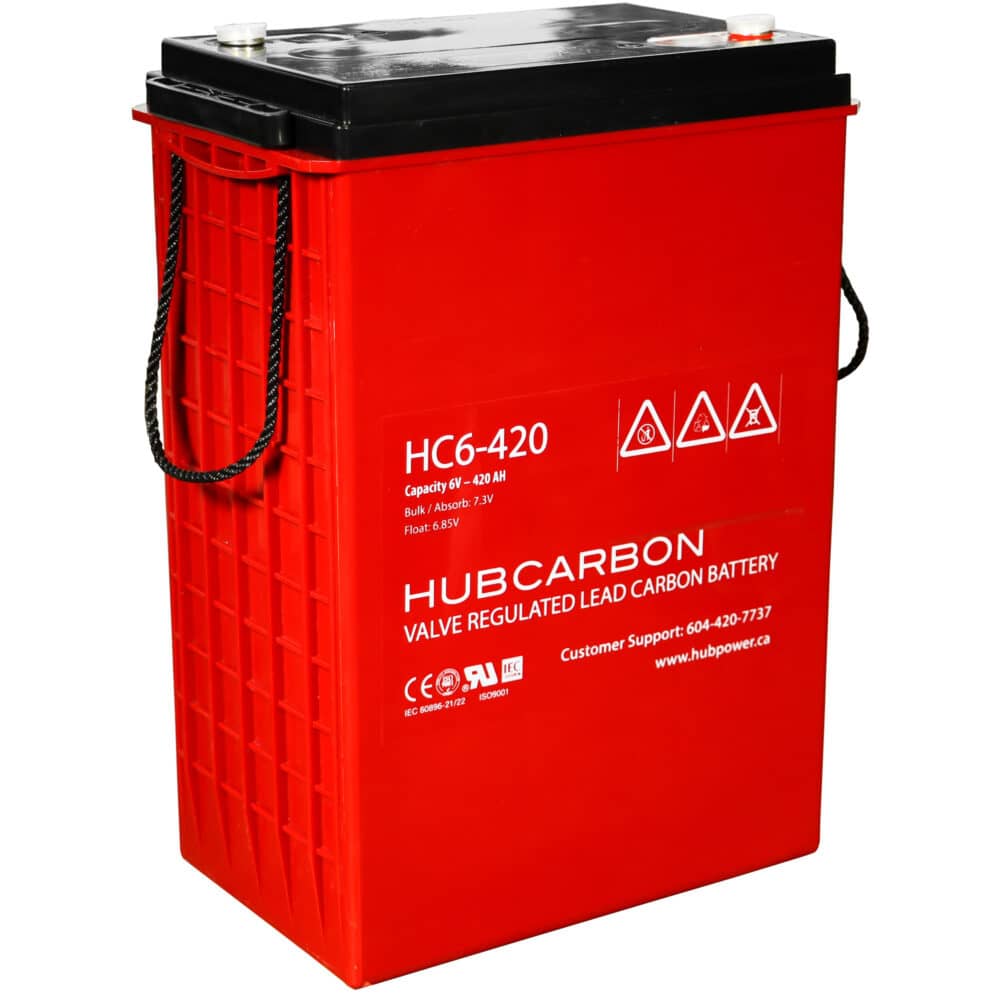

  3. Lead-Carbon Batteries:
    • Charge Efficiency: Lead-carbon batteries, which combine lead-acid chemistry with carbon additives, can have a higher charge efficiency compared to traditional flooded lead-acid batteries. They may achieve charge efficiencies of 90-95% or even slightly higher. The carbon additives help reduce sulfation and improve efficiency.
    • Factors Affecting Efficiency: Lead-carbon batteries exhibit improved efficiency due to the carbon additives, reduced gassing, and longer cycle life compared to standard lead-acid batteries.

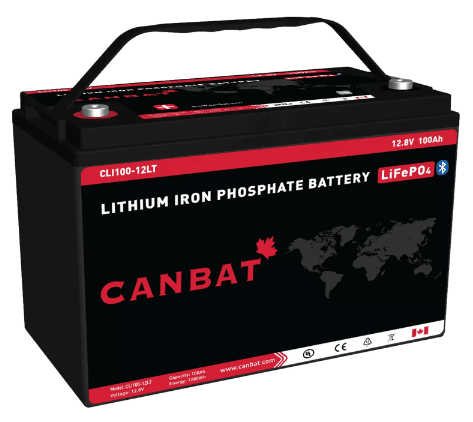

  4. Lithium Chemistry Batteries:
    • Charge Efficiency: Lithium-ion and lithium-polymer batteries are known for their high charge efficiency, often exceeding 95% and, in some cases, even higher such as 98 and 99%
    • Factors Affecting Efficiency: Lithium batteries have low internal resistance and fewer energy losses during charging and discharging compared to lead-acid batteries. Additionally, advanced battery management systems in lithium batteries help maintain high efficiency levels.

How Does The Charge Efficiency Affect My Off-Grid Solar System?

If your solar system allows you to adjust its parameters, which is common in many systems, you should configure the charge efficiency factor to match the type of battery chemistry you’re using. This way, when you’re charging the battery, the system takes into account the fact that some energy is lost in the process. For example, if you withdraw 50 ampere-hours of energy from the battery and you’ve set a charge efficiency of 95%, the charger will actually put back around 55 ampere-hours to make up for those losses.

​Conclusion

In summary, when comparing battery charge efficiencies, flooded lead-acid and sealed AGM batteries show similar performance, while lead-carbon batteries provide a slight edge due to the addition of carbon in their chemistry. In contrast, lithium chemistry batteries stand out for their notably high charge efficiency, making them a preferred choice in applications where energy efficiency and long cycle life are crucial. However, it’s worth noting that specific battery models and manufacturers may exhibit variations in efficiency, so it’s essential to refer to the manufacturer’s specifications for precise values when selecting a battery.

At IOTG Solar, we take the time to thoroughly explain these factors to our customers during the system design process. We understand that the final outcome and the choice of battery chemistry and brands depend on factors like cost and the customer’s vision for their future solar system. We are committed to assisting our customers at every step, ensuring they make informed decisions that align with their expectations and objectives.
