What Is A Busbar?

A busbar, short for “busbar conductor” or simply “bus,” is a metallic strip or bar that is used to conduct and distribute electrical power within an electrical system or substation. Busbars are typically made of copper or aluminum and are designed to carry high currents of electricity. They provide a low-resistance path for the flow of electrical energy and are an essential component in electrical power distribution.

In an off-grid solar power system, you can use busbars in several key areas to efficiently and safely manage the distribution of electrical power. Off-grid systems typically involve solar panels, batteries, inverters, charge controllers, and other components. Once you have more components to add, busbars become a key part of your system.

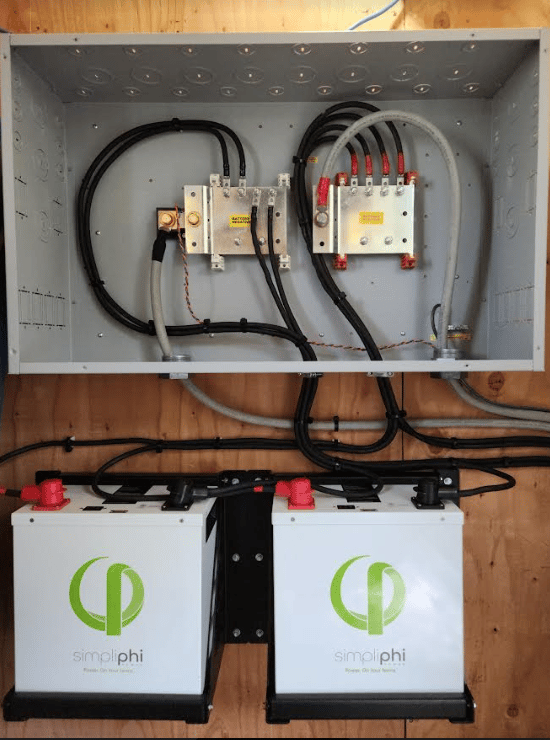

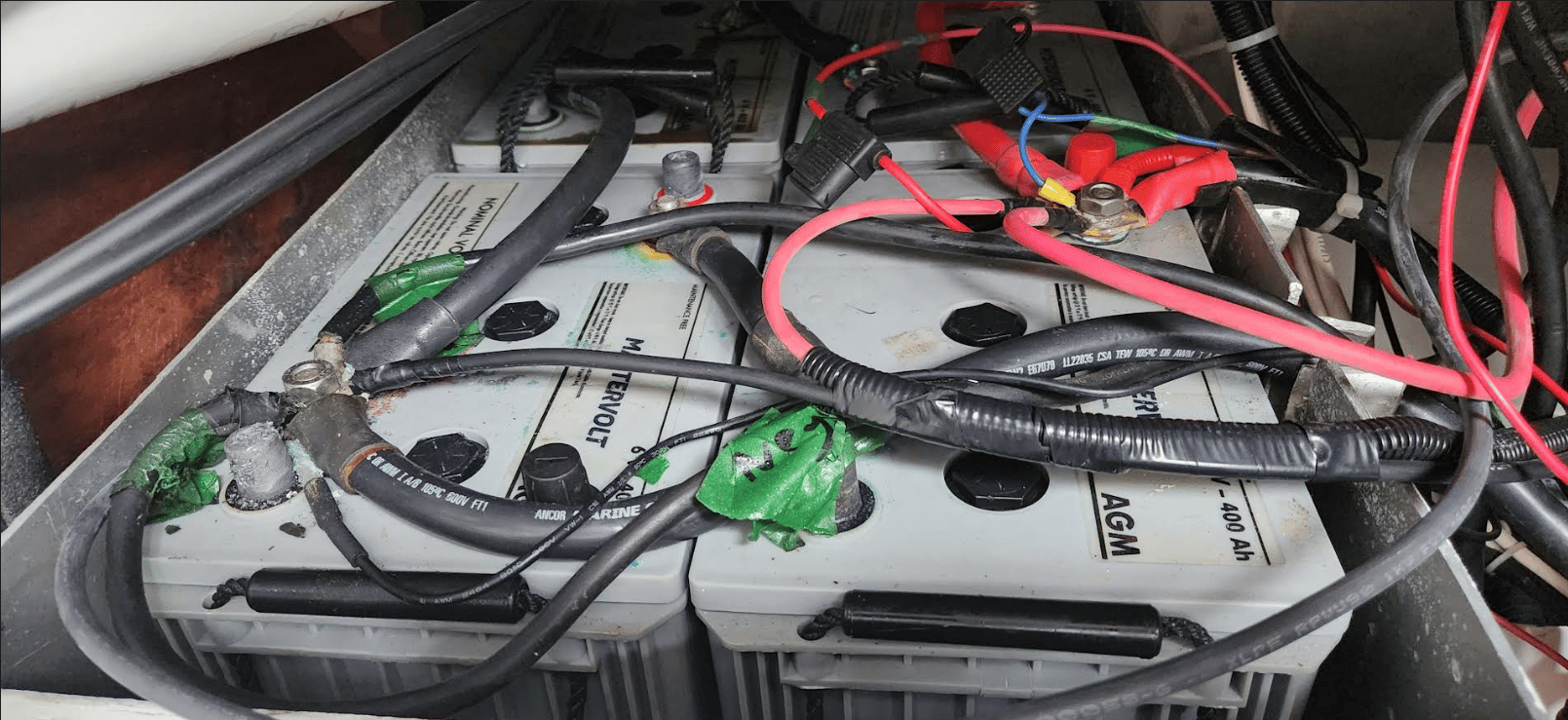

The current arrangement of the battery connections (seen below) in this main house battery bank is highly disorganized and cluttered, with an excessive number of connections. It is evident that this setup would greatly benefit from the introduction of busbars to streamline and improve its overall efficiency and safety.

When Do I Know When I Need Busbars In My Off-Grid Solar System?

1. Battery bank connections: Busbars can be used to interconnect the various batteries in your battery bank. This allows for a central point of connection, reducing the complexity of wiring and ensuring that all batteries receive an equal charge and discharge, like in Lithium battery connections where they must be connected in parallel.

2. Inverter connections: Busbars can be used to connect the output of your inverter to the distribution panel or to connect multiple inverters together if you have a multi-inverter setup.

3. Distribution panel: If your off-grid system includes a distribution panel to route power to different loads or circuits, busbars can be used within the distribution panel to efficiently distribute power to various branch circuits or loads.

4. Grounding and bonding: Busbars can also be used in the grounding and bonding system of your off-grid installation to ensure that all components are properly grounded and connected.

5. Charge controller connections: In systems with multiple charge controllers, busbars can be used to interconnect the controllers and route power from the solar panels to the battery bank.

6. Connection of other auxiliary components: Busbars can be used to connect other auxiliary components in your system, such as safety disconnects, surge protectors, or monitoring equipment.

white clouds and blue sky during daytime


Busbars come in various shapes and sizes, including flat bars, tubular bars, and more complex designs, depending on the specific application and current-carrying capacity required. They are a fundamental component of electrical power distribution systems and play a crucial role in ensuring a reliable and efficient flow of electricity within various electrical installations.

When using busbars in an off-grid solar power system, it’s essential to consider factors such as current-carrying capacity, proper sizing, and the type of busbar material (copper or aluminum) to ensure the efficient and safe distribution of electrical power. Additionally, follow all safety and design guidelines, and consult with a qualified solar system installer or engineer to ensure that your system is correctly configured and compliant with local electrical codes and regulations.
