How Do You Connect Solar Panels ( Part 1 )
What does it mean to connect solar panels in series or in parallel?
- Solar Energy Empowerment is a Journey
- Introducing Solar Panel Connections
- How to connect solar panels in series
- How to connect solar panels in parallel
- How to connect solar panels in series parallel
- Conclusion
Solar Energy Empowerment is a Journey
In the serene countryside, a retired schoolteacher named James decided to embark on a new adventure in his golden years. Inspired by the concept of sustainable living, he dreamed of powering his quaint cottage with solar energy. Excited by the prospect of creating his own power, he purchased a set of solar panels, eager to set up his off-grid system.
As the delivery truck dropped off the package, James opened it with enthusiasm but was soon overwhelmed by the complexity of the solar panels and their components. Unfamiliar with the technical aspects of solar energy systems, he hesitated to proceed. Determined not to give up, he flipped through the instruction manual, hoping for clarity, but it felt like reading an alien language.
Feeling disheartened, James decided to seek guidance from his tech-savvy neighbor, Daniel, who had a passion for renewable energy. Daniel kindly agreed to help, understanding that the world of solar panels could be daunting for beginners.
With a warm smile, Daniel visited James’s cottage. He patiently explained the basics of connecting solar panels, simplifying the process into manageable steps. He showed James how to identify positive and negative terminals and how to link the panels together to form a solar array.
As they worked side by side, Daniel shared stories of his own solar panel installation, offering encouragement to James. The retired teacher’s face lit up with newfound understanding, and his initial uncertainty began to fade.
With the panels connected, the moment of truth arrived. As the sun dipped below the horizon, bathing the cottage in hues of orange and gold, they flipped the switch. To James’s delight, the LED lights inside the cottage glowed brightly, powered by the solar energy harnessed from the sun.
Overwhelmed with gratitude, James thanked Daniel for his invaluable help. Daniel smiled and reminded him that learning something new was a journey, and he should feel proud of taking the first step towards understanding how solar panels work.
He learned that sustainable solutions require not only a vision but also a deep understanding of the technical aspects involved. Through his journey, James exemplified how a willingness to learn and seek guidance can pave the way for a brighter, sustainable future.
At IOTG Solar, we wholeheartedly believe in educating everyone about solar energy. Learning is the key to understanding your system and determining how far you can go with sustainable power solutions.
Introducing Solar Panel Connections
In this step-by-step exploration, we’ll demystify the process, showing you how to create these connections correctly and safely. Whether you’re setting up a small residential system or a large-scale solar array, understanding series and parallel connections is essential for optimizing your solar power output.
Comprehending panel connections is essential for system voltages and amperages. Further exploration in upcoming articles will shed light on these crucial aspects.
Solar Panels in Series

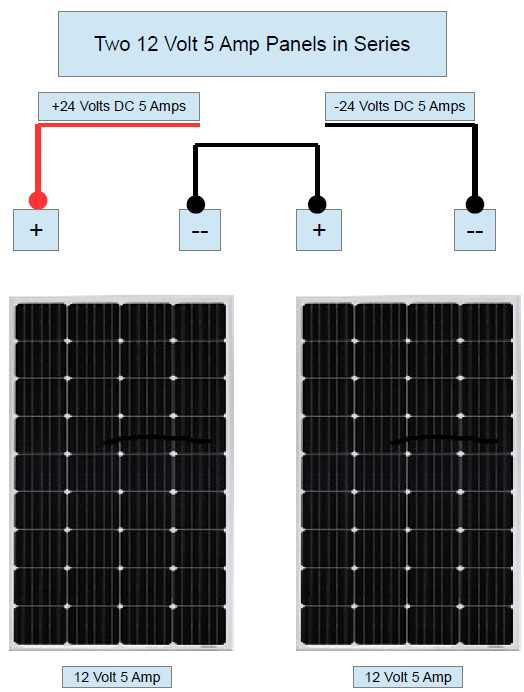

When you connect solar panels in series, you’re basically linking them together like a chain. It’s like adding their voltages to get a higher total voltage. Here’s how you do it:
Imagine you have two solar panels with each panel having a voltage of 12 volts (V) with a current of 5 amps (A). When you connect them in series, you connect the negative (-) terminal of the first panel to the positive (+) terminal of the second panel.
Now, the positive terminal of the first panel and the negative terminal of the second panel become your output points. The voltage of the two panels adds up, so you get 12V + 12V = 24 volts as the total voltage.
Note: When connecting solar panels in series, the current (amps) remains the same as that of a single panel, but the voltage doubles. In this case, you get a total current of 5 amps.
See diagram below:
Solar Panels in Parallel

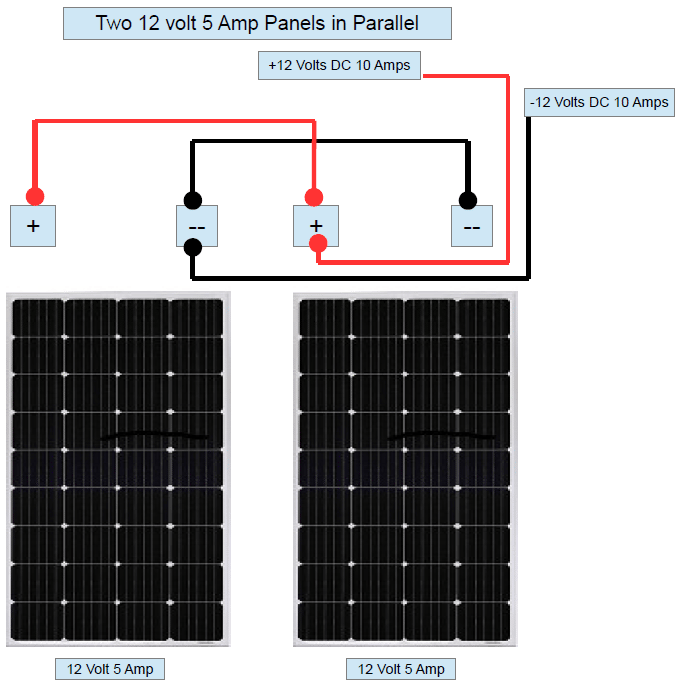

When you connect solar panels in parallel, you’re creating a team of panels that work together side by side. It’s like adding their currents to get a higher total current. Here’s how you do it:
Take those same two solar panels, each with a voltage of 12V, and this time, you connect the positive (+) terminal of both panels together and the negative (-) terminal of both panels together.
Now, the positive terminal connection and the negative terminal connection become your output points. When you connect panels in parallel, the voltage remains the same, so you still have 12 volts.
,Note: When connecting solar panels in parallel, the voltage remains the same as that of a single panel, but the current doubles.
So in this case, the current (which is like the flow of electricity) adds up. So if each panel gives a current of 5 amps (A), when you connect them in parallel, you get 5A + 5A = 10 amps as the total current.
See diagram below:
Solar Panels in Series Parallel

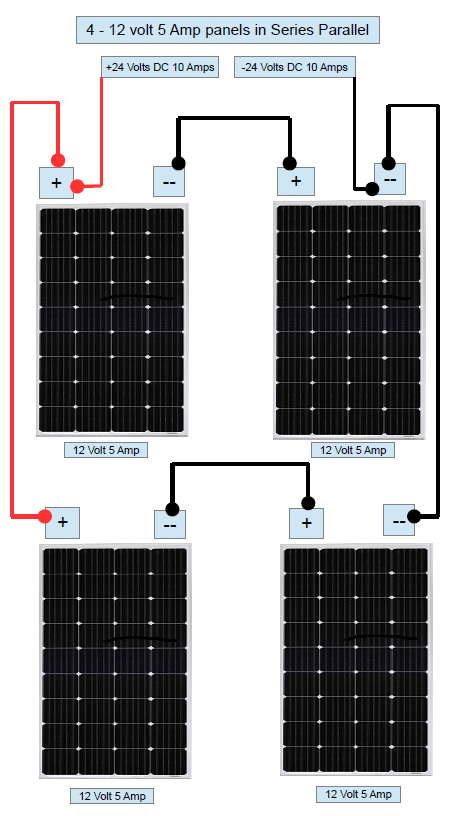

To get even more power, you can combine series and parallel connections. Here’s an example:
- Let’s say you have four solar panels, each with a voltage of 12V and a current of 5A.
- You can first make two pairs of panels by connecting two panels in series (negative of the first panel to positive of the second panel) to get two sets of 24V panels.
- Then, you connect these two pairs in parallel (positive of one set to positive of the other set, and negative of one set to negative of the other set).
- By doing this, you still have 24 volts, but now the total current becomes 5A + 5A = 10 amps.
This way, you get the best of both worlds: higher voltage from the series connection and higher current from the parallel connection, resulting in a more powerful solar array.
See diagram below:
Conclusion
Now that we’ve learned about connecting solar panels in series, parallel, and series-parallel configurations, we’ve gained valuable knowledge. However, determining the best connection for your specific project can still be a complex decision. To avoid overwhelming you with a lengthy and confusing article, we’ll address these questions in follow-up articles. This way, we can provide more detailed and focused explanations to help you make informed decisions about your solar panel setup.
In our upcoming articles, we’ll delve into essential factors that can help you make an informed decision when choosing between series and parallel connections for your solar panels. We’ll carefully examine the benefits and limitations of each configuration, allowing you to understand their implications fully.
Connecting your solar panels to a battery or a group of batteries is a crucial aspect of any solar power setup. We’ll guide you through this process, explaining how a solar controller comes into play and how it helps regulate and optimize the charging and discharging of your batteries, ensuring they are utilized efficiently.
By the end of our series, you’ll have gained a complete understanding of solar panel connections, battery integration, and system protection. Armed with this knowledge, you’ll be well-prepared to make informed decisions about your solar power project and confidently manage and maintain your renewable energy system.
We’re excited to embark on this educational journey with you, and we look forward to empowering you with the knowledge needed to harness the full potential of solar energy!
