Amp hours in Amp hours out and SOC What is the Difference?

Understanding Ah I/O vs SOC in an Off-Grid System.

• What Ah in and Ah Out?
• What is the SOC?
• What is the difference between Ah in/out and SOC?
• Conclusion

What is Ah In/Out?

1. Amp-Hours In (AH In):
   • AH In measures the total amount of electrical charge that has been added to the battery during the charging process.
   • It represents the cumulative energy input into the battery over time.
   • Positive values indicate the amount of charge added to the battery during charging cycles.
2. Amp-Hours Out (AH Out):
   • AH Out measures the total amount of electrical charge that has been removed from the battery during discharging.
   • It represents the cumulative energy output from the battery over time.
   • AH Out is typically expressed as negative values, indicating the amount of charge consumed during discharge cycles.

What is SOC?

State of Charge (SOC):

• SOC represents the current level of charge remaining in the battery relative to its total capacity.
• It is often expressed as a percentage, where 0% SOC indicates a fully discharged battery, and 100% SOC indicates a fully charged battery.
• SOC provides a snapshot of the battery’s current state and is useful for assessing how much energy is available for use.

What is the difference between Ah In/Out and SOC?

• AH In and AH Out are cumulative measures, providing a historical record of the total charge added or removed from the battery over time.
• SOC, on the other hand, is an instantaneous measure that reflects the current state of charge, indicating how much capacity is available at a specific moment.
• AH In and AH Out are specific to charging and discharging activities, respectively, while SOC provides an overall picture of the battery’s current capacity status.

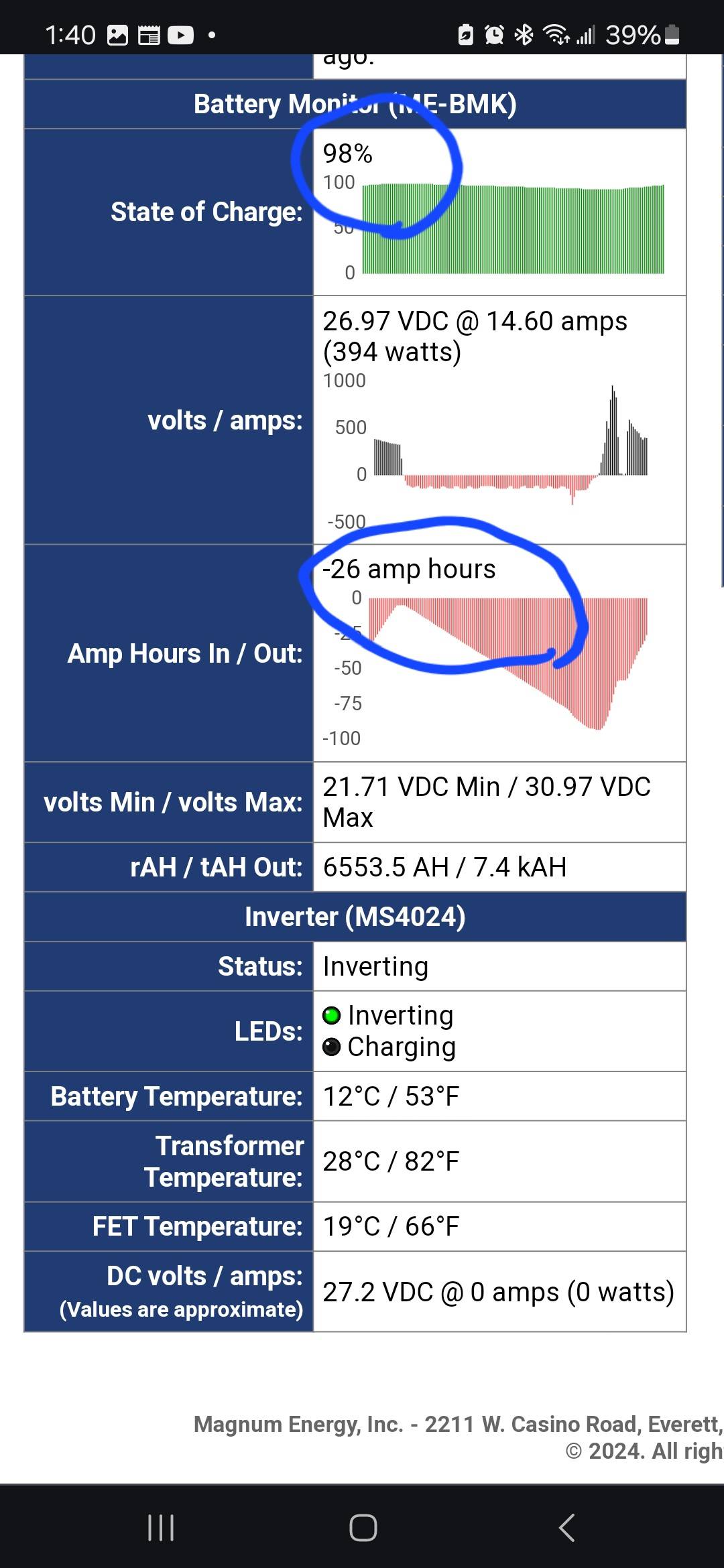

• AH In and AH Out are often expressed in units of Amp-Hours, while SOC is commonly presented as a percentage as you can see below in the graph generated via the online application of an existing off-grid solar system. Here you can see the SOC is at 98% and the Amp hours are at a -26 Ah in real time.

Conclusion

In conclusion, Amp-Hours In (AH In), Amp-Hours Out (AH Out), and State of Charge (SOC) serve as indispensable metrics in the monitoring of batteries within off-grid and standalone power systems.

AH In meticulously records the total charge injected into the battery during charging cycles, offering a historical perspective on energy input. Conversely, AH Out diligently tracks the total charge withdrawn from the battery during discharging cycles, providing crucial insights into energy output and load consumption patterns over time.

In contrast, SOC offers a real-time snapshot of the battery’s immediate state, promptly revealing the remaining charge in relation to its total capacity. This instantaneous measure empowers users to make informed decisions regarding power utilization and devise effective recharging strategies.

The integration of AH In, AH Out, and SOC measurements by modern battery monitoring systems delivers a complete understanding of a battery’s performance and overall health. This comprehensive approach enables users to fine-tune battery usage, safeguard against overcharging or deep discharging, and ensure the dependable and efficient functioning of off-grid and standalone power systems.

It’s noteworthy that while some legacy systems may rely solely on voltage monitoring, the contemporary addition of external shunts allows for the incorporation of AH In, AH Out, and SOC metrics, providing users with enhanced control and insights. For those seeking to upgrade their systems, IOTG Solar offers convenient access to these advancements through our  online store.  Whether you are in need of a new monitoring solution or wish to augment an existing system, our team is ready to assist, ensuring you harness the full benefits of modern off-grid solar technology.
